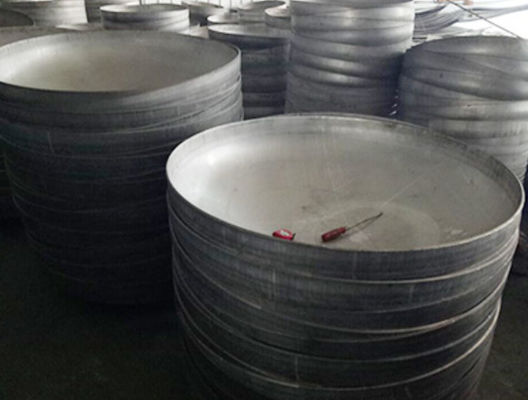

Carbon Steel Torispherical Tank Ends Pressure Vessel Heads BIS

Carbon Steel End Elliptical Head Torispherical Heads Tank Tank Dish Ends Pressure Vessel Heads

PRODUCT DETELS


When it comes to pressure vessel heads, carbon steel is commonly used due to its mechanical properties and cost-effectiveness. There are two types of carbon steel heads that are often used: elliptical heads and torispherical heads.

1. Elliptical Heads:

   • Elliptical heads, also known as ellipsoidal heads, have a shape that closely resembles a segment of an ellipsoid.
   • These heads have two radii: a major radius (R) and a minor radius (r).
   • The major radius is typically equal to the inside diameter (ID) of the pressure vessel, while the minor radius is usually 0.9 times the major radius.
   • Elliptical heads provide smooth transitions and distribute stress more uniformly, making them suitable for applications where stress concentrations need to be minimized.
   • They are commonly used in pressure vessels, tanks, and other cylindrical vessels.

2. Torispherical Heads:

   • Torispherical heads, also known as flanged and dished heads, have a shape that includes a dish portion blended with a smaller radius knuckle.
   • The dish radius (r) is typically 6% of the head's diameter (D), while the knuckle radius (k) is usually 10% of D.
   • Torispherical heads provide good structural strength and are commonly used in pressure vessels, tanks, and other applications.
   • They are suitable for medium to high-pressure applications and are often used when space constraints are a consideration.

In both cases, the specific dimensions of the heads will depend on the design requirements, including pressure, temperature, and vessel size. It is essential to follow the appropriate design codes and standards, such as ASME Section VIII, Division 1, to ensure the heads meet the required specifications and safety standards for pressure vessel applications.

When selecting carbon steel for these heads, considerations such as the carbon content, tensile strength, and impact resistance should be taken into account. The specific carbon steel grade will depend on the application and the applicable codes and standards.

It's important to consult with a qualified engineer or refer to the appropriate design codes and standards to ensure the correct selection and design of carbon steel elliptical heads or torispherical heads for your pressure vessel or tank.

SPECIFICATIONS


PRODUCTS


FAQ

Q: Why choose us?

A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.

Q:Can we provide OEM/ODM service?

A:Yes.Please feel free to contact us for further details.

Q:What are your terms of payment?
A:One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C

Q:Can we visit your factory?
A:A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.

Q:Can you provide samples?
A:Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
