Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Dimensions: | 25mm-5000mm |
|---|---|---|---|
| Specification: | Customized | Reduction Ratio: | About 10% |
| Material: | Dual-phase Steel | Surface: | Coating |
| Application: | Boiler, Fire Pit, Oil | ||
| High Light: | Flange Standard Dish End Dimensions,Standard Dish End Dimensions |
||

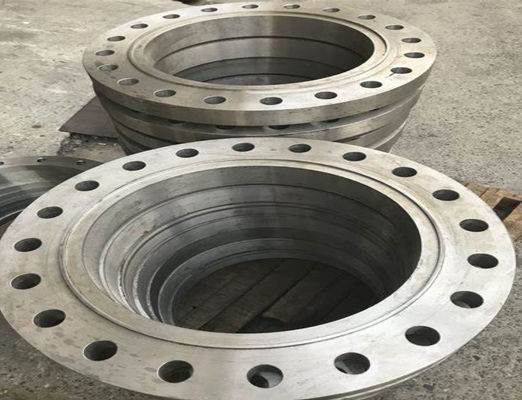

Stainless steel tube plate flange large diameter head carbon steel flange standard
PRODUCT DETELS
A combination of terms related to flanges and materials are mentioned here. Let's break them down:
Stainless Steel Tube Plate Flange: A tube plate flange refers to a flange that is specifically designed to connect a tube or pipe to a plate or other structural members. It provides a secure and leak-free connection between the tube and the plate. In this case, the flange is made from stainless steel, which offers excellent corrosion resistance and durability.
Large Diameter Head: The term "large diameter head" is not specific enough to provide a clear definition. However, in general, it could refer to a flange or head component with a larger diameter compared to standard sizes. The specific dimensions and configuration would depend on the application and requirements.
Carbon Steel Flange: A carbon steel flange is a flange made from carbon steel, which is a common material known for its strength and durability. Carbon steel flanges are widely used in various industries due to their good mechanical properties and affordability.
Non-Standard Flange: Non-standard flange refers to a flange that does not conform to standard dimensions or configurations outlined by industry standards, such as ASME B16.5 or DIN. Non-standard flanges are often custom-designed to meet specific project requirements or unique applications.
It's important to note that the specific details, dimensions, and configurations of stainless steel tube plate flanges, large diameter heads, carbon steel flanges, and non-standard flanges can vary based on project requirements, industry standards, and design considerations. When working with flanges or any other components, it is recommended to consult with qualified professionals, such as engineers or manufacturers, to ensure proper selection and use of these components for your specific application
1. About quality:We will check the quality of each batch of goods before shipping. If there are quality problems with the products received, or quality problems caused by express transportation, please contact us in time.
2. About the model:Before placing an order, please communicate with the sales or customer service staff about the required product specifications.
3. About after-sales:The company provides comprehensive after-sales and usage guidance and strives to solve customers' questions and needs.
The scope of products
Applicable to various building decoration industries
Widely used in electric power, metallurgy, food, pharmaceutical, petrochemical, water treatment equipment and light industry equipment. The company can also undertake the processing of incoming drawings and samples according to customer requirements, and customize products of different specifications.
production workshop
equipment Exhibition
A corner of the warehouse
One-stop ordering of head products
Non-standard customization In stock for two days Customized for seven days
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
