Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head

Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head
Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head

Large Image :  Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head

Product Details:
Place of Origin: CHINA
Brand Name: HaiQun
Model Number: ASME / ANSI B16.9 UNS S31803 / 2205
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden box and iron shelf or as percustomers requirement
Delivery Time: 30-60 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head

Standard: SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD Outer Diameter: 6mm - 200mm
Reduction Ratio: About 10% General: Semi Elliptical Head
Material: Carbon Steel Stainless Steel/316 Stainless Steel Keyword: Stainless Steel Elliptical Head/stainless Steel Head/dish Head
Thickness: T2mm–300mm
High Light:

Semi Torispherical Head And Ellipsoidal Head


Torispherical Head And Ellipsoidal Head

High quality torisphere head dish end elliptical head for LPG tank head



When it comes to LPG (liquefied petroleum gas) tank heads, high-quality torispherical heads and elliptical heads are commonly used due to their structural integrity and suitability for pressure vessel applications. Here's some information about these types of heads:

  1. Torispherical Heads:

    • Torispherical heads, also known as flanged and dished heads, are widely used in LPG tank applications.
    • These heads consist of a dish portion blended with a smaller radius knuckle.
    • The dish radius (r) is typically 6% of the head's diameter (D), while the knuckle radius (k) is usually 10% of D.
    • Torispherical heads provide good structural strength and are suitable for medium to high-pressure applications.
    • They offer smooth transitions and distribute stress more uniformly, which is important for the safety and integrity of LPG tanks.
  2. Elliptical Heads:

    • Elliptical heads, also known as ellipsoidal heads, are another suitable option for LPG tank heads.
    • These heads have a shape that closely resembles a segment of an ellipsoid.
    • The major radius (R) is typically equal to the inside diameter (ID) of the LPG tank, while the minor radius (r) is usually 0.9 times the major radius.
    • Elliptical heads provide smooth transitions and distribute stress more uniformly, helping to minimize stress concentrations.
    • They are commonly used in pressure vessels, tanks, and other cylindrical vessels.

For LPG tank heads, it is crucial to prioritize high quality and safety. When selecting torispherical or elliptical heads, consider the following:

  • Choose heads that are manufactured in compliance with relevant codes and standards, such as ASME Section VIII, Division 1, or other applicable regulations.
  • Ensure that the heads are fabricated from materials suitable for LPG service, such as carbon steel or stainless steel, depending on the specific requirements and compatibility with the stored LPG.
  • Work with reputable manufacturers or suppliers with experience in producing high-quality tank heads for LPG applications.
  • Follow proper quality control measures, including inspections and testing, to ensure the heads meet the required specifications and safety standards.

It is recommended to consult with a qualified engineer or refer to the applicable design codes and standards to ensure the appropriate selection and design of torispherical heads or elliptical heads for your specific LPG tank application.



Brand Name: HaiQun
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001

Such as oil, chemical industry, water conservancy, electric power,
boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available


Material Carbon Steel; Stainless Steel; Special Steel
Size 50-10000mm
Thickness 2mm--300mm
Surface Treatment 1. Intermediate & Final stage Heat Treatments;
2. Sand / Shot Blasting after Heat Treatment;
3. Weld Edge Preparation (Manual & Machined)
Reduction ratio About 10%
Certificate ISO9001
Technology 1. Cold & Hot forming;
2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres;
Applicable standard ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA
Test 1. Liquid Penetrant Examination;
2. Ultrasonic Testing;
3. 100% Radiography Testing of weld seams;
4. Magnet Particle Examination;
5. Inspection under various Third party Inspection Agencies
6. NDT( after forming): DPT, RT, MPI, UT;
7. NDT: 100% DPT, UT & RT OF weld joint
Connection Welding
Application Pressure vessel

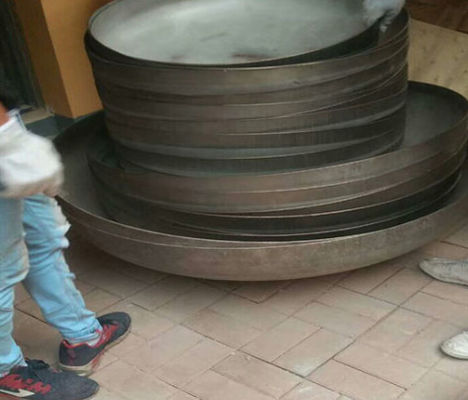

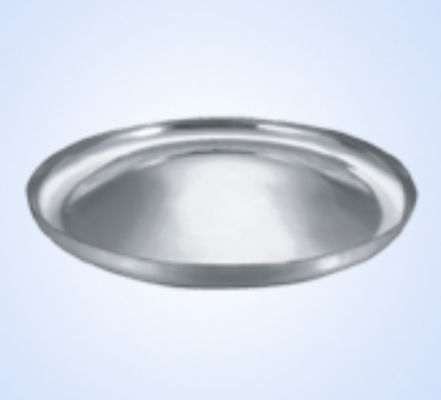

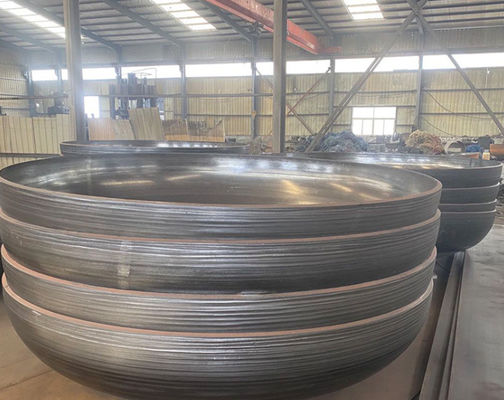

Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head 0Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head 1Semi Torispherical Head And Ellipsoidal Head For LPG Tank Head 2




Q: Why choose us?

A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.


Q: Can we provide OEM/ODM service?

A: Yes.Please feel free to contact us for further details.


Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C


Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.


Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
