Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Size: | 8 In. To 48 In |
|---|---|---|---|
| Reduction Ratio: | About 10% | General: | Semi Elliptical Head |
| Material: | Carbon Steel Stainless Steel/316 Stainless Steel | Connection: | Welding |
| Thickness: | T2mm–300mm | ||
| Highlight: | Torispherical Dished End Types,Dished End Types Stainless Steel |
||
PRODUCT DETELS

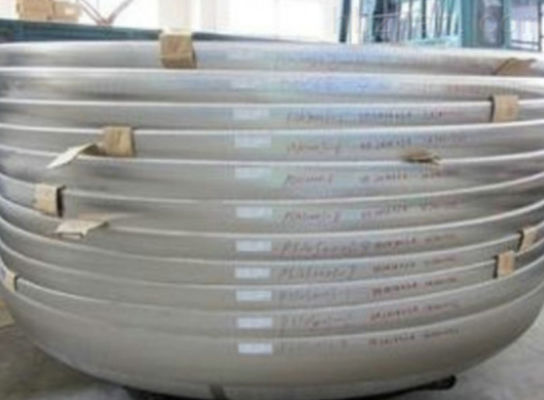

Torispherical dished head ends made from stainless steel (SS304 or SS316) are commonly used in oil and gas tanks, boilers, and pressure vessels. Here's some information about these components:
Stainless Steel: Stainless steel is a corrosion-resistant alloy that contains a high percentage of chromium. SS304 (also known as 304 stainless steel) and SS316 (also known as 316 stainless steel) are popular grades of stainless steel used in various industries. Both grades offer excellent corrosion resistance, high strength, and good mechanical properties.
Torispherical Dished Head Ends: Torispherical dished head ends, also called torispherical heads or dished ends, are curved vessel ends with a shape resembling a portion of a sphere blended with a cylindrical section. They provide improved pressure distribution and reduced stress concentration compared to other head shapes. Torispherical heads are commonly used in pressure vessels, tanks, and boilers.
Application in Oil and Gas Tanks, Boilers, and Pressure Vessels: Torispherical dished head ends made from stainless steel are suitable for various applications in the oil and gas industry, including storage tanks, process vessels, and boilers. They are designed to withstand the pressures and temperature requirements of these systems while providing structural integrity and efficient pressure containment.
SS304 and SS316: SS304 and SS316 are stainless steel grades that differ primarily in their composition. SS304 contains 18% chromium and 8% nickel, while SS316 contains 16% chromium, 10% nickel, and 2% molybdenum. SS316 offers improved corrosion resistance, especially in environments with chlorides or acids, making it suitable for more corrosive applications.
When using torispherical dished head ends made from stainless steel (SS304 or SS316) in oil and gas tanks, boilers, or pressure vessels, it is essential to follow relevant industry standards and codes, such as ASME Boiler and Pressure Vessel Code or other applicable regulations. Adhering to these standards ensures the safety, quality, and performance of the vessel and its components.
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
