Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Shape: | Equal |
|---|---|---|---|
| Diameter: | 3800 | Outer Diameter: | 6mm - 200mm |
| Material: | SA516 | Surface: | Coating |
| Highlight: | Hemispherical Propane Tank Head,Propane Tank Head Coating |
||

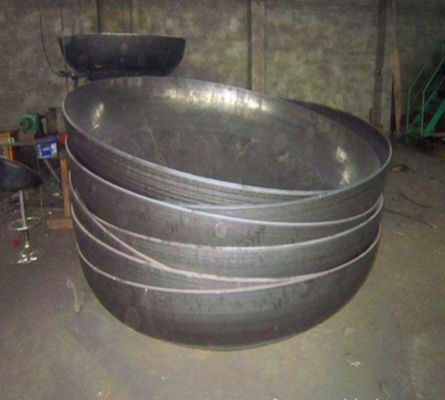

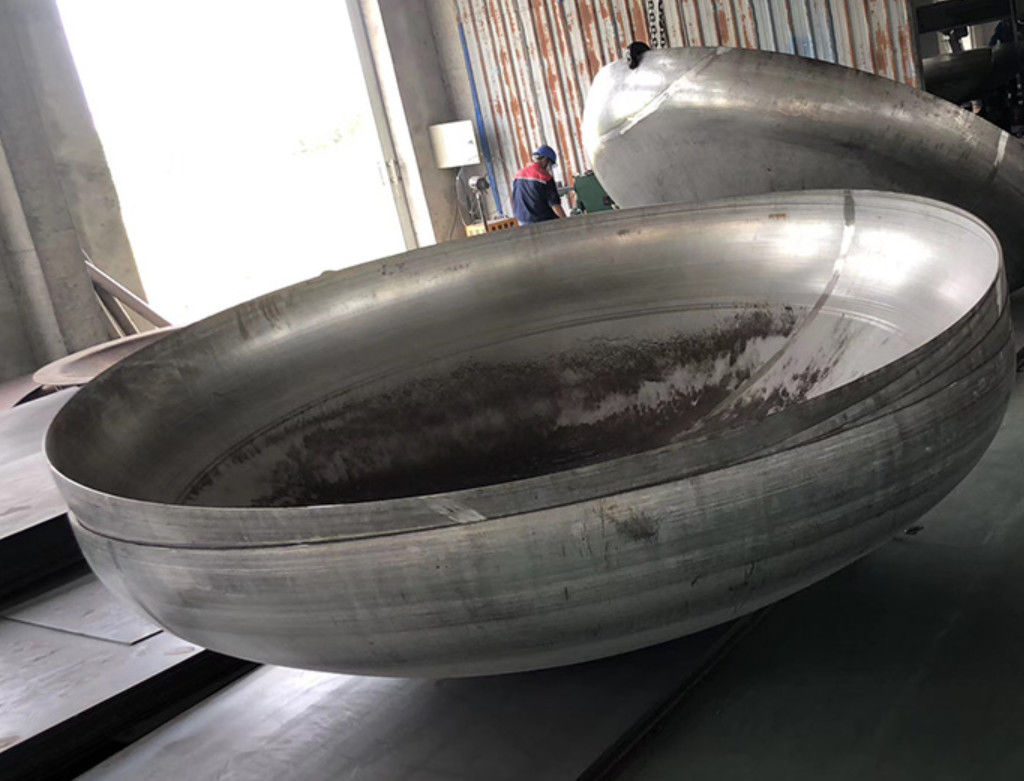

2mm 89mm Hemispherical Carbon Steel End Cap Pressure Bessel Head For Propane Tank
PRODUCT DETELS
A 2mm thick, 89mm diameter hemispherical carbon steel end cap pressure vessel head is designed for use in propane tanks.
2mm Thickness: The value of 2mm represents the thickness of the end cap. In this case, it indicates that the end cap is relatively thin, which is suitable for smaller pressure vessels or tanks with lower pressure ratings.
89mm Diameter: The diameter of 89mm represents the size of the end cap. It signifies that the end cap has a radius of 44.5mm, resulting in a smaller size suitable for propane tanks with corresponding dimensions.
Hemispherical: The term "hemispherical" indicates that the end cap has a shape resembling a half-sphere or hemisphere. Hemispherical end caps are commonly used in pressure vessels due to their favorable stress distribution characteristics.
Carbon Steel: The end cap is made from carbon steel, which is a common material choice for pressure vessel components. Carbon steel offers good strength, durability, and resistance to corrosion, making it suitable for various applications, including propane tanks.
When using a 2mm thick, 89mm diameter hemispherical carbon steel end cap pressure vessel head for propane tanks, it is important to consider factors such as material compatibility, pressure ratings, safety requirements, and compliance with relevant codes and standards specific to your region. It is recommended to consult with engineers, pressure vessel specialists, or manufacturers experienced in designing and fabricating pressure vessel components for propane tanks to ensure the proper selection and design for your specific requirements.
Additionally, local regulations and standards governing the design, fabrication, and use of propane tanks should be adhered to for safety and compliance purposes.
The scope of products
Applicable to various building decoration industries
Widely used in electric power, metallurgy, food, pharmaceutical, petrochemical, water treatment equipment and light industry equipment. The company can also undertake the processing of incoming drawings and samples according to customer requirements, and customize products of different specifications.

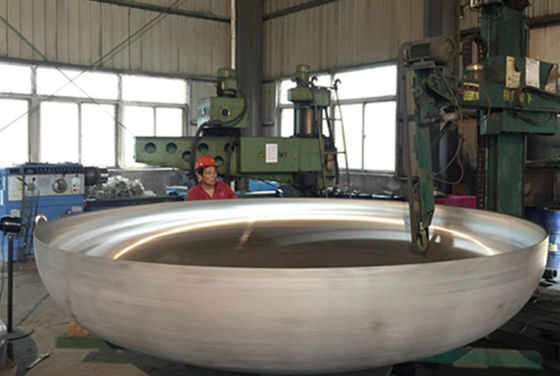

production workshop
equipment Exhibition
A corner of the warehouse
One-stop ordering of head products
Non-standard customization In stock for two days Customized for seven days
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
Product shipping packaging
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
