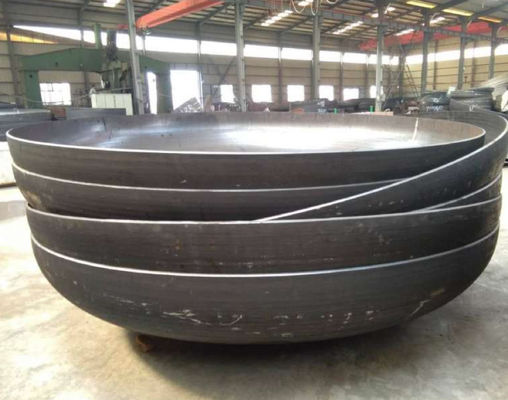

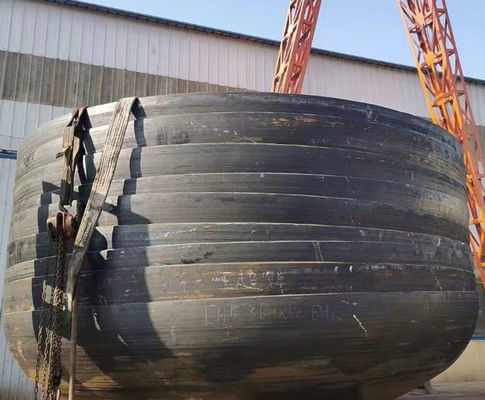

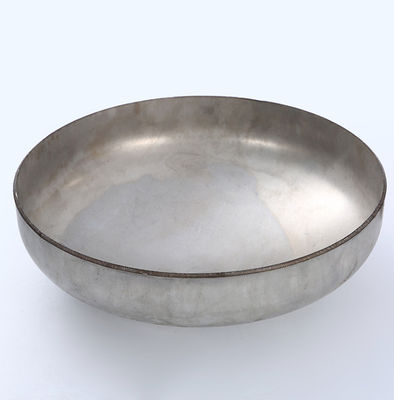

Elliptical Types Of Dished Ends Tank Caps For Heat Exchanger Parts

Description
Standard: SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD Head Shape: Round
Size: 8 In. To 48 In Outer Diameter: 6mm - 200mm
Reduction Ratio: About 10% General: Semi Elliptical Head
Material: Carbon Steel Stainless Steel
High Light:

Elliptical Types Of Dished Ends

,

Types Of Dished Ends Tank

,

Type Of Dish Ends Caps

A516 GR.70 Elliptical Heads Torispherical Heads Tank Caps For Heat Exchanger Parts.




PRODUCT DETELS


A516 GR.70 elliptical heads and torispherical heads are specific types of vessel heads commonly used in heat exchangers and other pressure vessel applications. Here's some information about each component:

  1. A516 GR.70: A516 GR.70 refers to a specific grade of carbon steel plate that is often used for pressure vessel applications. It is normalized steel with excellent weldability and notch toughness, making it suitable for various industrial environments. A516 GR.70 offers good strength and corrosion resistance, making it a popular choice for heat exchanger parts.

  2. Elliptical Heads: Elliptical heads, also known as elliptical dished heads or elliptical end caps, are curved vessel ends that have an elliptical shape. They are often used in pressure vessels, tanks, and heat exchangers. The elliptical shape provides structural stability and helps distribute pressure evenly across the vessel or heat exchanger. Elliptical heads offer a balance between strength and pressure distribution.

  3. Torispherical Heads: Torispherical heads, also referred to as dished heads or Klopper heads, are another type of vessel head commonly used in heat exchangers and pressure vessels. They have a shape resembling a portion of a sphere blended with a cylindrical section. The torispherical shape provides improved pressure distribution and reduced stress concentration compared to other head shapes.

Tank Caps: Tank caps, also known as end caps or closures, are used to seal the ends of tanks or heat exchangers. In the context of heat exchanger parts, tank caps are typically elliptical heads or torispherical heads that serve as closure components for the heat exchanger shell.

When using A516 GR.70 material for elliptical heads, torispherical heads, or tank caps in heat exchanger parts, it combines the benefits of carbon steel, such as strength and weldability, with the specific head shapes designed to optimize pressure distribution and structural integrity.



It is important to follow applicable codes and standards, such as the ASME Boiler and Pressure Vessel Code, when designing, fabricating, and inspecting heat exchangers and pressure vessels with A516 GR.70 elliptical heads, torispherical heads, or tank caps to ensure their safety and compliance with industry regulations.



SPECIFICATIONS


Brand Name: HaiQun
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,
boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available



Material Carbon Steel; Stainless Steel; Special Steel
Size 50-10000mm
Thickness 2mm--300mm
Surface Treatment 1. Intermediate & Final stage Heat Treatments;
2. Sand / Shot Blasting after Heat Treatment;
3. Weld Edge Preparation (Manual & Machined)
Reduction ratio About 10%
Certificate ISO9001
Technology 1. Cold & Hot forming;
2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres;
Applicable standard ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA
Test 1. Liquid Penetrant Examination;
2. Ultrasonic Testing;
3. 100% Radiography Testing of weld seams;
4. Magnet Particle Examination;
5. Inspection under various Third party Inspection Agencies
6. NDT( after forming): DPT, RT, MPI, UT;
7. NDT: 100% DPT, UT & RT OF weld joint
Connection Welding
Application Pressure vessel



PRODUCTS


Elliptical Types Of Dished Ends Tank Caps For Heat Exchanger Parts 0

Elliptical Types Of Dished Ends Tank Caps For Heat Exchanger Parts 1



PRODUCT DELIVERY



Elliptical Types Of Dished Ends Tank Caps For Heat Exchanger Parts 2



FAQ



Q: Why choose us?

A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.



Q: Can we provide OEM/ODM service?

A: Yes.Please feel free to contact us for further details.



Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C



Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.



Q:Can you provide samples?
A:Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
