Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Type: | Cap |
|---|---|---|---|
| Dimensions: | 25mm-5000mm | Outer Diameter: | 6mm - 200mm |
| Reduction Ratio: | About 10% | General: | Semi Elliptical Head |
| Material: | Dual-phase Steel | Surface: | Coating |
| High Light: | 25mm Conical Tank Heads,Conical Tank Heads Steel |
||
SA516 Gr70 Conical Tank Heads Dual Phase Steel 25mm Pipe Cap Stainless Steel Dish
PRODUCT DETELS
SA516 Gr70 is a common grade of carbon steel that is often used in the fabrication of pressure vessels and tanks. It offers good strength and is suitable for high-pressure and high-temperature applications.

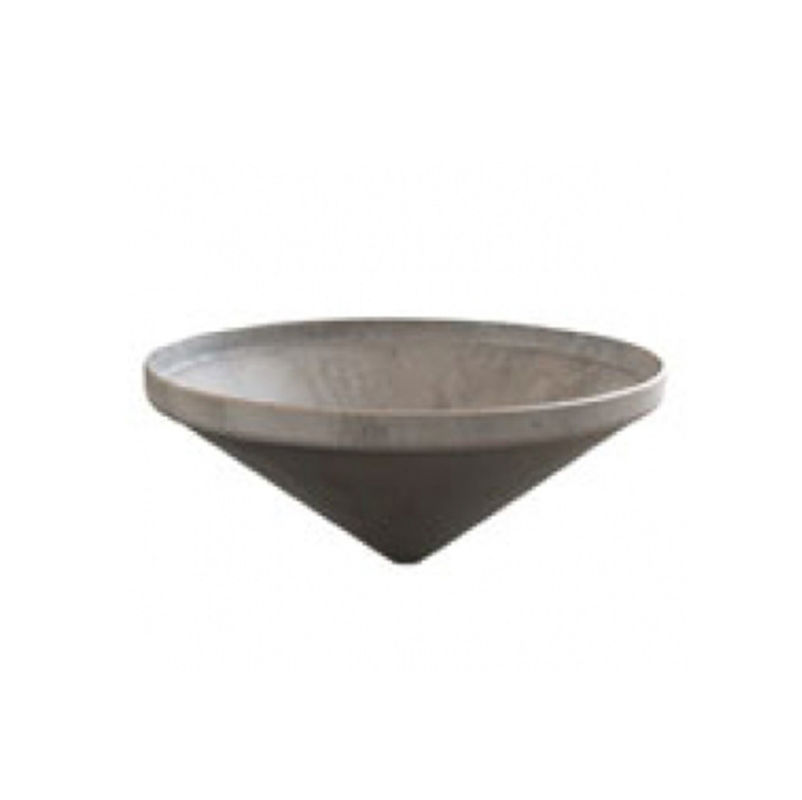

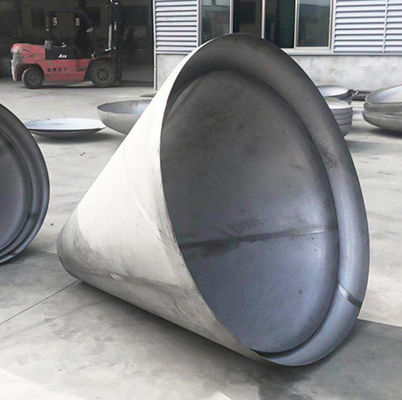

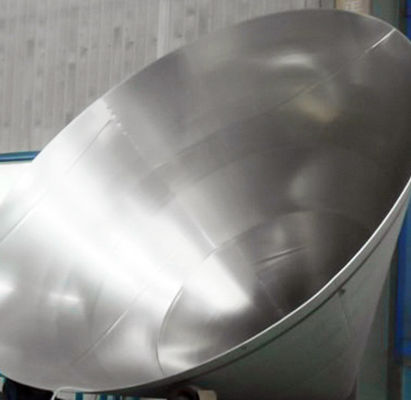

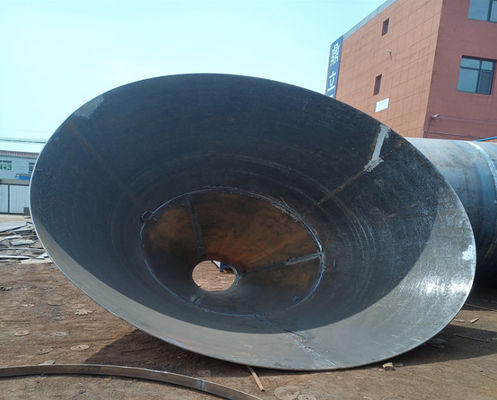

Conical tank heads, as the name suggests, have a conical shape and are used as end closures for conical tanks. These heads provide a smooth transition from the cylindrical section to the cone, ensuring structural integrity and pressure containment.
Dual-phase steel is a type of high-strength steel that combines two different microstructures, typically ferrite and martensite. It offers a balance of strength and toughness, making it suitable for demanding applications that require both strength and impact resistance.
25mm pipe cap refers to a cap or end closure used to seal the end of a pipe with a 25mm diameter. Pipe caps are commonly used in various industries to protect the pipe end, prevent contamination, and provide a finished appearance.
Stainless steel dish refers to a dish-shaped head or end cap made from stainless steel. Stainless steel offers excellent corrosion resistance and is commonly used in applications where the stored medium is corrosive or exposed to high temperatures.
The specific selection of material, such as SA516 Gr70 carbon steel or stainless steel, depends on the design requirements, operating conditions, and compatibility with the stored medium. It is important to follow relevant industry standards and guidelines for the fabrication, welding, and inspection of these components to ensure their safe and reliable performance in pressure vessels and tanks.
The scope of products
Applicable to various building decoration industries
Widely used in electric power, metallurgy, food, pharmaceutical, petrochemical, water treatment equipment and light industry equipment. The company can also undertake the processing of incoming drawings and samples according to customer requirements, and customize products of different specifications.
production workshop
equipment Exhibition
A corner of the warehouse
One-stop ordering of head products
Non-standard customization In stock for two days Customized for seven days
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
