Product Details:
|
| Color: | White Silver Gold | Head Shape: | Round |
|---|---|---|---|
| Size: | 8 In. To 48 In | Outer Diameter: | 6mm - 200mm |
| Reduction Ratio: | About 10% | General: | Semi Elliptical Head |
| Material: | Carbon Steel Stainless Steel | ||
| High Light: | Semi Elliptical Dished Head,Titanium Elliptical Dished Head,Semi Elliptical Head |
||

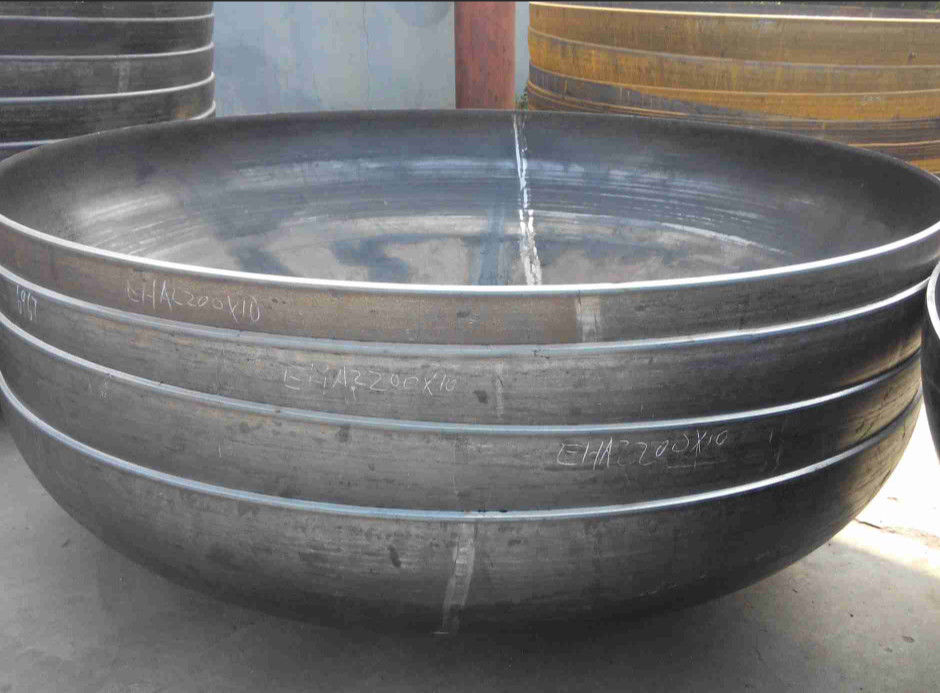

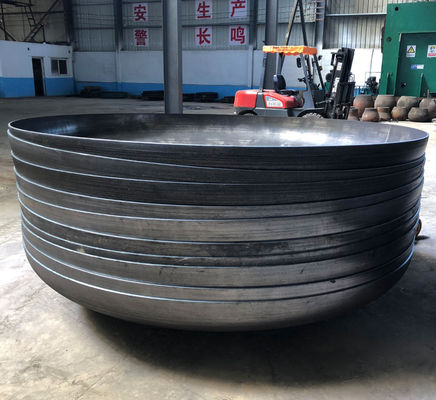

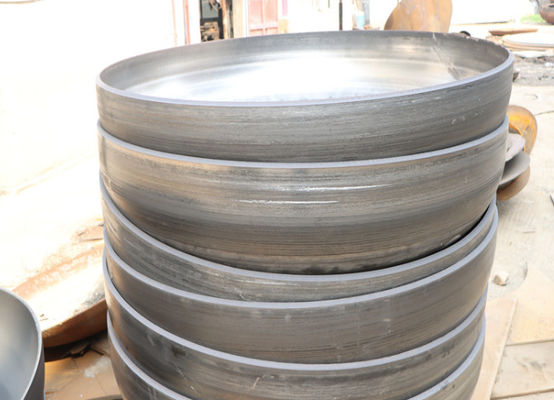

Titanium Semi Elliptical Head End Cap Grade 2 For Titanium Storage Tanks
PRODUCT DETELS
A titanium semi-elliptical head end cap made from Grade 2 titanium is a specific component used in the construction of titanium storage tanks. Here is some information about these components:
Grade 2 Titanium: Grade 2 titanium is a commercially pure titanium alloy that offers excellent corrosion resistance, high strength-to-weight ratio, and good formability. It is widely used in various industries, including chemical processing, aerospace, and marine applications. Grade 2 titanium is particularly suitable for applications requiring corrosion resistance and is commonly selected for storage tanks handling aggressive substances.
Semi-Elliptical Head: A semi-elliptical head, also known as a semi-ellipsoidal dish end, is a curved vessel end that has a shape resembling half of an ellipse. It is used as a closure component for one end of a storage tank. The semi-elliptical shape provides structural stability, allows for efficient pressure distribution, and reduces stress concentrations. It is a common choice for storage tanks due to its favorable pressure-handling characteristics.
When constructing titanium storage tanks, using Grade 2 titanium for semi-elliptical head end caps combines the benefits of titanium, such as corrosion resistance and lightweight properties, with the specific head shape designed to optimize pressure containment and structural integrity.
It is important to follow industry standards and codes, such as API 650 for welded steel tanks or other relevant standards specific to titanium storage tanks, during the design, fabrication, and inspection processes. Adhering to these standards ensures the tanks meet the necessary quality and safety requirements for storing substances in a titanium storage environment.
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
PRODUCT DELIVERY
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q:Can we provide OEM/ODM service?
A:Yes.Please feel free to contact us for further details.
Q:What are your terms of payment?
A:One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q:Can we visit your factory?
A:A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q:Can you provide samples?
A:Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
