OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS

I'm Online Chat Now

OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS

OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS
OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS

Large Image :  OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS

Product Details:
Place of Origin: CHINA
Brand Name: HaiQun
Certification: SGS/BV/ABS/LR/TUV/DNV/BIS/API/PED
Model Number: ASME / ANSI B16.9 UNS S31803 / 2205
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: wooden box and iron shelf or as percustomers requirement
Delivery Time: 30-60 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000

OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS

Description
Standard: SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD Head Code: Dished Heads
Dimensions: 25mm-5000mm Specification: Customized
Reduction Ratio: About 10% Surface Treatment: Mirror Polishing, Acid Pickling
Material: Stainless Steel Surface: Coating
Application: Boiler, Fire Pit, Oil Technics: Forged
High Light:

OEM Stainless Steel Pipe End Cap

,

Stainless Steel Pipe End Cap 25mm

,

Steel Pipe End Cap 5000mm

1'' ANSI B16.9 BW Stainless Steel Pipe End Cap 304/316L 31254 /32750 SCH 40​




PRODUCT DETELS


The information you provided refers to a specific type of stainless steel pipe end cap. Here's a breakdown of the details:

  1. Size: The pipe end cap is designed to fit a 1-inch pipe. The size specification follows the ANSI B16.9 standard, which is a common standard for pipe fittings in the United States.

  2. ANSI B16.9: ANSI B16.9 is a standard published by the American National Standards Institute (ANSI) that covers factory-made wrought steel pipe fittings. This standard specifies the dimensions, tolerances, and materials for various types of pipe fittings, including end caps.

  3. BW: BW stands for butt weld, indicating that the end cap is designed for butt welding to the pipe. Butt welding involves joining two pieces of pipe or pipe fittings by aligning the ends and creating a welded joint.

  4. Stainless Steel: The end cap is made from stainless steel, which provides excellent corrosion resistance and durability. The specific grade of stainless steel mentioned is 304/316L, indicating that the end cap can be manufactured using either 304 stainless steel or 316L stainless steel. These grades are commonly used in various industries due to their resistance to corrosion and their suitability for sanitary applications.

  5. 31254/32750: The numbers 31254 and 32750 refer to specific stainless steel grades. 31254 is a super duplex stainless steel, while 32750 is a duplex stainless steel. These grades offer enhanced corrosion resistance and high strength, making them suitable for demanding applications.

  6. SCH 40: SCH 40 refers to the wall thickness of the pipe. It indicates that the pipe is designed to withstand a standard schedule 40 wall thickness, which is commonly used in various industrial applications.

When considering a 1'' ANSI B16.9 BW stainless steel pipe end cap with the specifications mentioned, it is important to ensure that it meets your specific requirements in terms of material compatibility, pressure ratings, dimensional accuracy, and compliance with relevant standards. Consulting with suppliers or manufacturers experienced in pipe fittings and stainless steel materials can help you select the appropriate end cap for your application.



After-sales service



1.About quality:We will check the quality of each batch of goods before shipping. If there are quality problems with the products received, or quality problems caused by express transportation, please contact us in time.



2.About the model:Before placing an order, please communicate with the sales or customer service staff about the required product specifications.



3.About after-sales:The company provides comprehensive after-sales and usage guidance and strives to solve customers' questions and needs.



The scope of products



Applicable to various building decoration industries
Widely used in electric power, metallurgy, food, pharmaceutical, petrochemical, water treatment equipment and light industry equipment. The company can also undertake the processing of incoming drawings and samples according to customer requirements, and customize products of different specifications.

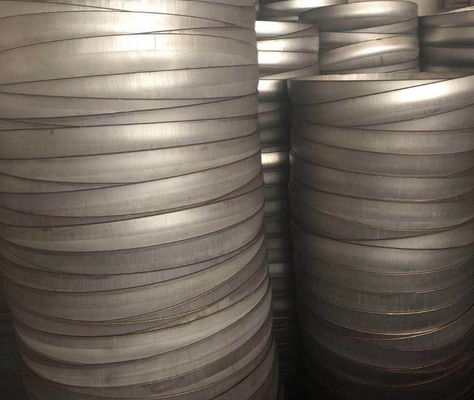

production workshop



OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS 0

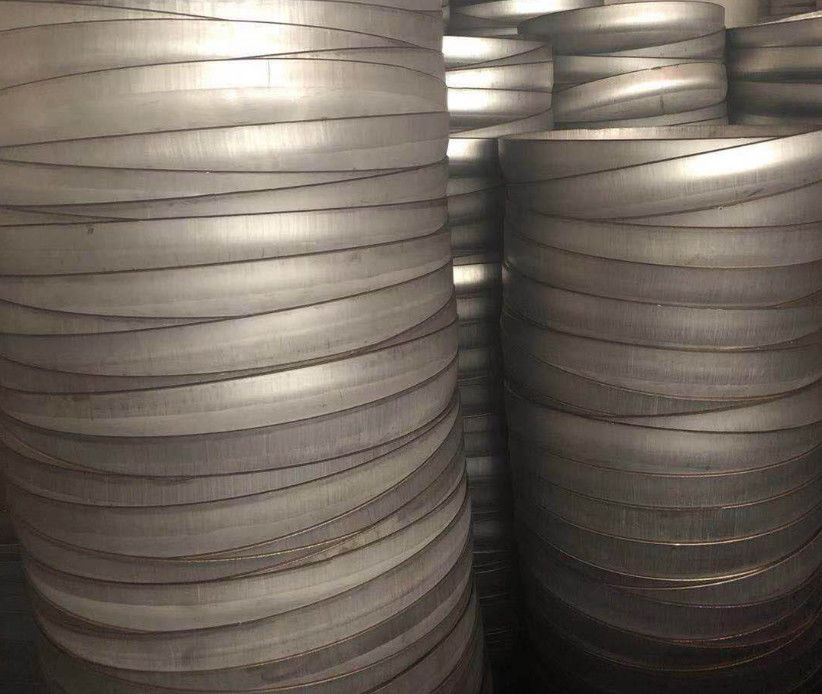

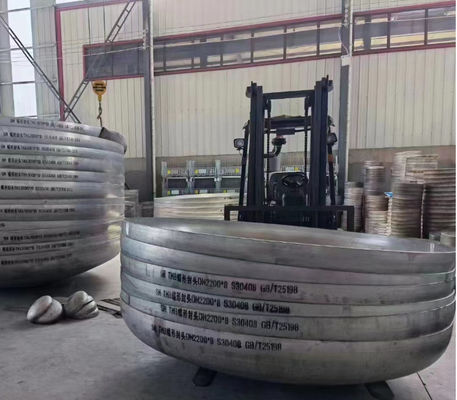

equipment Exhibition

OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS 1OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS 2

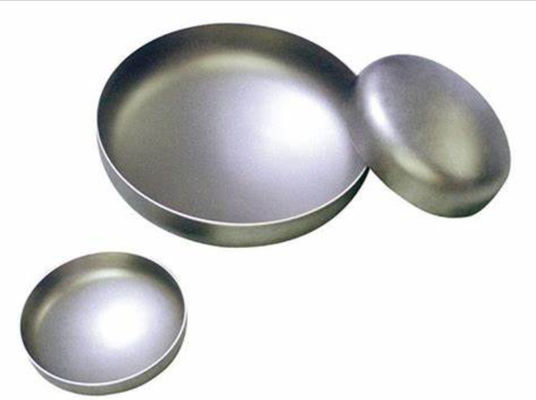

A corner of the warehouse

OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS 3OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS 4



One-stop ordering of head products



Non-standard customization       In stock for two days      Customized for seven days

OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS 5



SPECIFICATIONS


Brand Name: HaiQun
Diameter: 89mm--10000mm
Thickness: 2mm--300mm
Reduction Ratio: about 10%
Material: Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations.
Forming method: Hot forming,cold forming
Surface Treatment: Sand Blasting,Pickling,oil,discaling
Inspection: UT,RT,MT,PT,TOFD.
Applicable Standard: ASME ,PED and GB
Certificate: ISO9001,ISO45001,OHSAS18001
Applications:

Such as oil, chemical industry, water conservancy, electric power,
boiler, machinery, metallurgy, sanitary construction etc.

Package: Wooden cases ,wooden pallet,Steel pallet or as per customers requirement
Customized Product: Available



Material Carbon Steel; Stainless Steel; Special Steel
Size 50-10000mm
Thickness 2mm--300mm
Surface Treatment 1. Intermediate & Final stage Heat Treatments;
2. Sand / Shot Blasting after Heat Treatment;
3. Weld Edge Preparation (Manual & Machined)
Reduction ratio About 10%
Certificate ISO9001
Technology 1. Cold & Hot forming;
2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres;
Applicable standard ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA
Test 1. Liquid Penetrant Examination;
2. Ultrasonic Testing;
3. 100% Radiography Testing of weld seams;
4. Magnet Particle Examination;
5. Inspection under various Third party Inspection Agencies
6. NDT( after forming): DPT, RT, MPI, UT;
7. NDT: 100% DPT, UT & RT OF weld joint
Connection Welding
Application Pressure vessel



PRODUCTS


OEM Stainless Steel Pipe End Cap 25mm - 5000mm Dimensions BIS 6





FAQ



Q: Why choose us?

A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.



Q: Can we provide OEM/ODM service?

A: Yes.Please feel free to contact us for further details.



Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C



Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.



Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
