Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Diameter: | 3800 |
|---|---|---|---|
| Reduction Ratio: | About 10% | General: | Semi Elliptical Head |
| Material: | SA516 | Surface: | Coating |
| High Light: | Hemispherical Hot Formed Tank Heads,Hot Formed Tank Heads Steel |
||

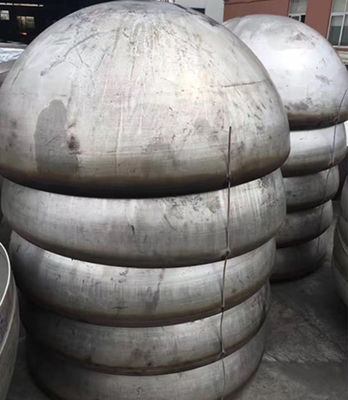

Q235B SS304 800mm Hemispherical Tank Heads Forming Steel Hemisphere
PRODUCT DETELS
The combination of Q235B and SS304 suggests a hybrid construction using carbon steel (Q235B) and stainless steel (SS304).
Q235B: Q235B is a carbon steel grade commonly used in structural applications. It has good mechanical properties and is known for its affordability and weldability. It is often used in the construction of pressure vessels, tanks, and other equipment.
SS304: SS304 refers to stainless steel grade 304, which is an austenitic stainless steel known for its excellent corrosion resistance, high-temperature strength, and versatility. Stainless steel 304 is commonly used in various industries, including the food and beverage, pharmaceutical, and chemical industries, due to its resistance to corrosion and staining.

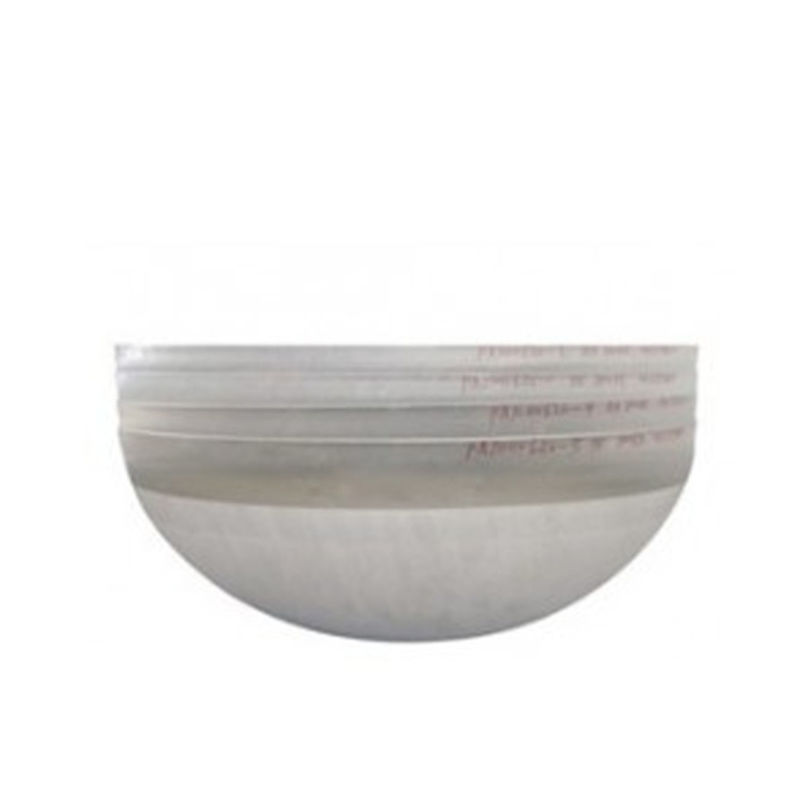

800mm Hemispherical Tank Heads: Hemispherical tank heads are curved or domed end caps used to close and seal the ends of tanks or pressure vessels. The term "800mm" indicates the diameter of the tank head, meaning it has a radius of 400mm, resulting in a hemispherical shape.
Forming Steel Hemisphere: A forming steel hemisphere refers to the process of shaping a flat steel plate into a half-sphere or hemisphere shape. This process involves using hydraulic presses or other forming techniques to deform the steel plate into the desired shape.
Combining Q235B carbon steel and SS304 stainless steel in a hemispherical tank head indicates a hybrid construction, where the tank head is likely made of Q235B carbon steel while the interior surface is lined or clad with SS304 stainless steel for enhanced corrosion resistance.
When constructing tanks or pressure vessels with hybrid materials, it is important to consider factors such as material compatibility, joint design, pressure ratings, and compliance with relevant industry standards and codes. Consulting with engineers, pressure vessel specialists, or manufacturers experienced in hybrid construction can help ensure the proper selection and design for your specific application.
The scope of products
Applicable to various building decoration industries
Widely used in electric power, metallurgy, food, pharmaceutical, petrochemical, water treatment equipment and light industry equipment. The company can also undertake the processing of incoming drawings and samples according to customer requirements, and customize products of different specifications.

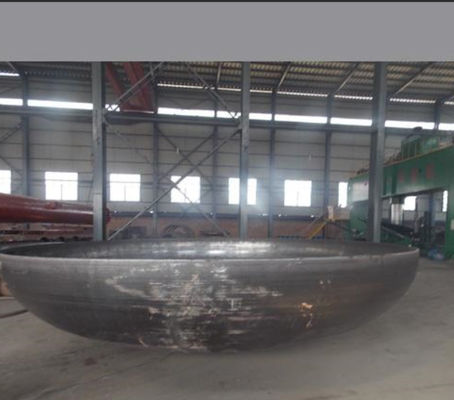

production workshop
equipment Exhibition
A corner of the warehouse
One-stop ordering of head products
Non-standard customization In stock for two days Customized for seven days
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
Product shipping packaging
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
