Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Head Shape: | Round |
|---|---|---|---|
| Size: | 8 In. To 48 In | Reduction Ratio: | About 10% |
| General: | Semi Elliptical Head | Technology: | Hot Pressing,cold Pressing |
| Application: | Petroleum,Chemical Industry,Boiler,Pressure Vessel | ||
| High Light: | OEM Pressure Vessel Head,Pressure Vessel Head Spherical |
||

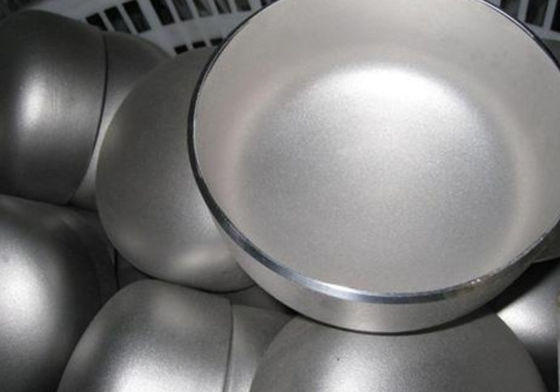

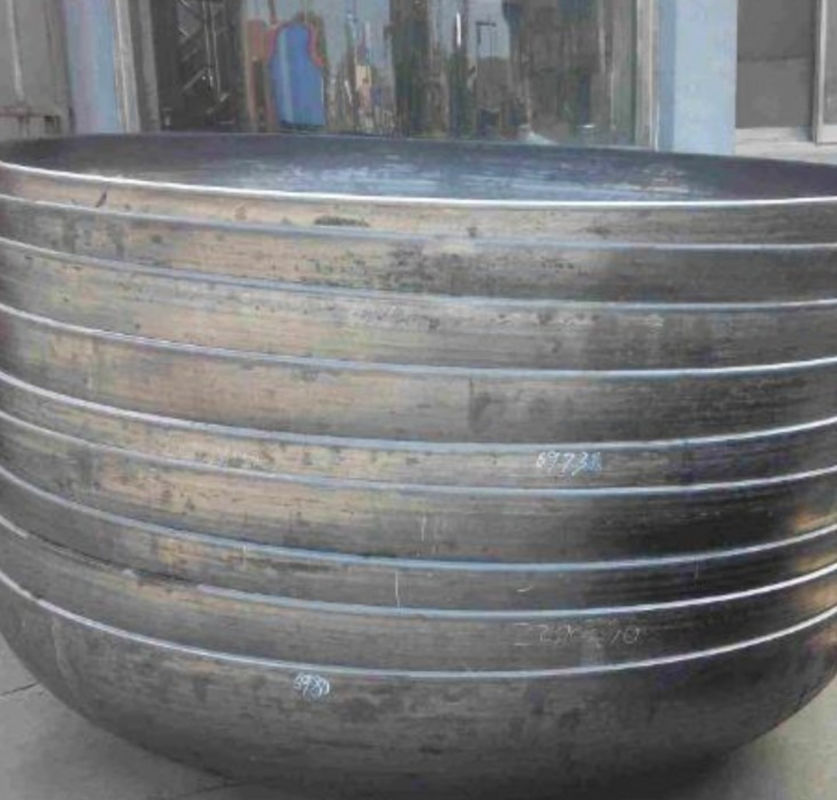

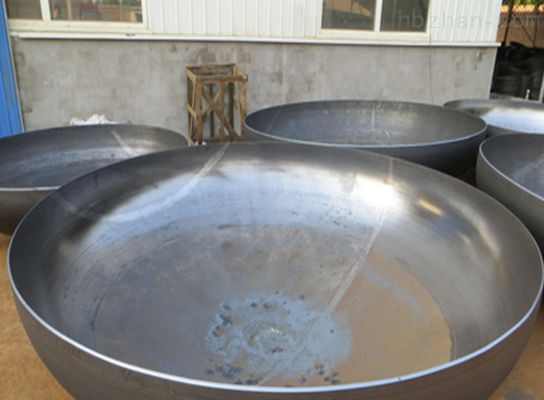

Spherical crown head Carbon steel head Large diameter Q245R Q345R pressure vessel head
PRODUCT DETELS
Heads for steel pressure vessels, including boiler heads, can come in different shapes and configurations based on the specific requirements of the vessel. Here are some commonly used types:
Hemispherical Heads: Hemispherical heads have a shape similar to half of a sphere. They provide good strength and are often used in high-pressure applications. These heads distribute stress more evenly, reducing the potential for stress concentration.
Ellipsoidal Heads: Ellipsoidal heads have an elliptical shape and are commonly used in pressure vessels. They provide good strength and are easier to fabricate compared to hemispherical heads. The most common type is the 2:1 elliptical head, where the depth is half the diameter.
Torispherical Heads: Torispherical heads have a shape that is a combination of a toroidal and a spherical section. They are often used in pressure vessels and boilers, providing a more economical option compared to hemispherical heads. Torispherical heads have a knuckle radius (the transition area between the head and the straight flange) and a crown radius (the curved section of the head).
Spherical Crown Heads: Spherical crown heads are spherical in shape and are used in applications where a fully spherical head is required. These heads provide excellent strength and are often used in high-pressure or specialized vessels.
Flat Heads: Flat heads are simply flat plates used as end closures for some pressure vessels. They are less common in high-pressure applications but may be used in certain low-pressure vessels or tanks.
In terms of material, carbon steel is commonly used for pressure vessel heads due to its strength and affordability. The selection of the head type and material depends on factors such as the pressure rating, temperature, vessel geometry, and regulatory requirements.
Large-diameter elliptical heads, as you mentioned, refer to elliptical heads with larger dimensions. These heads are used in vessels or tanks with larger diameters, providing a smooth transition between the cylindrical section and the head. The specific dimensions and material selection for large-diameter elliptical heads depend on the requirements of the pressure vessel and the industry standards followed.
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
PRODUCT DELIVERY
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
