Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Outer Diameter: | 6mm - 200mm |
|---|---|---|---|
| Reduction Ratio: | About 10% | General: | Semi Elliptical Head |
| Material: | Carbon Steel Stainless Steel/316 Stainless Steel | Connection: | Welding |
| Thickness: | T2mm–300mm | ||
| High Light: | Stainless Steel Torispherical Dished Head,Torispherical Dished Head Dimensions,Torispherical Head Dimensions |
||

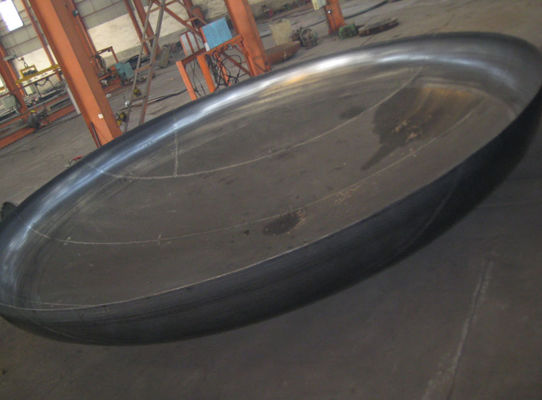

ASME Pressure Vessel Torispherical Heads Dished Heads
PRODUCT DETELS
ASME (American Society of Mechanical Engineers) pressure vessel torispherical heads, also known as dished heads, are widely used in the design and construction of pressure vessels. Here's some information about these components:
ASME Pressure Vessel Code: The ASME Boiler and Pressure Vessel Code establishes rules and regulations for the design, fabrication, inspection, and testing of pressure vessels. It ensures that pressure vessels are designed and constructed to meet safety standards and can withstand the intended pressure and temperature conditions.
Torispherical Heads: Torispherical heads, or dished heads, are curved vessel ends that consist of a spherical portion blended with a cylindrical section. They offer improved pressure distribution and reduced stress concentration compared to other head shapes. The torispherical shape is commonly used in pressure vessels due to its favorable mechanical properties.
Design and Fabrication: ASME pressure vessel torispherical heads are designed and fabricated in accordance with the requirements specified in the ASME Boiler and Pressure Vessel Code. This includes considerations such as material selection, dimensions, minimum thickness, tolerances, and welding requirements. The design and fabrication processes aim to ensure the structural integrity and safety of the pressure vessel.
Inspection and Testing: ASME requirements include rigorous inspection and testing procedures for pressure vessels and their components, including torispherical heads. This may involve non-destructive testing methods, such as ultrasonic testing or radiographic examination, to detect any flaws or defects. Pressure testing is also performed to verify the vessel's integrity and leak-tightness.
By complying with the ASME Pressure Vessel Code, pressure vessel manufacturers can ensure that the torispherical heads meet the necessary quality and safety standards. It is essential to consult the specific requirements of the ASME code and work with qualified engineers, fabricators, and inspectors to ensure compliance throughout the design, fabrication, inspection, and testing processes.
Please note that specific design and manufacturing details, such as material selection and thickness, will depend on the specific application, pressure, temperature, and other factors. Consulting the ASME code and working with experienced professionals is crucial to meet the precise requirements of your pressure vessel project.
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
