Product Details:
|
| Standard: | SCH.10, SCH.10S, SCH.20, SCH.30, SCH.40, SCH.40S, STD | Head Shape: | Round |
|---|---|---|---|
| Size: | 8 In. To 48 In | Outer Diameter: | 6mm - 200mm |
| Reduction Ratio: | About 10% | General: | Ellipsoidal Dished Head |
| Material: | Carbon Steel Stainless Steel | ||
| High Light: | OEM Ellipsoidal Dished Head,Ellipsoidal Dished Head,Elliptical Pressure Vessel |
||

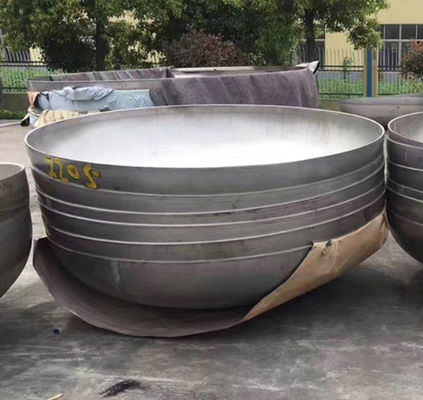

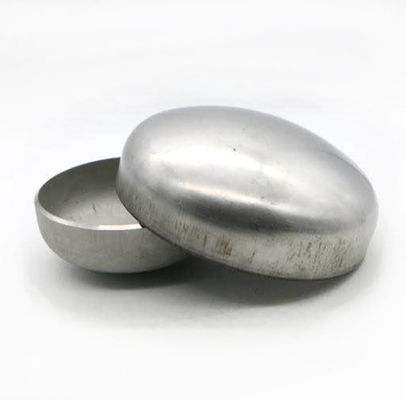

Closing Steel Oval Elliptical Dish Head For Atmospheric Tank
PRODUCT DETELS
A steel oval elliptical dish head is a type of dished head used as a closure for atmospheric tanks. It is typically made from steel and has an oval or elliptical shape. The oval shape provides structural strength and efficient stress distribution within the tank.
When specifying a steel oval elliptical dish head for an atmospheric tank, it is important to consider the following factors:
Material: Steel is a common material choice for atmospheric tank dish heads due to its strength and durability. The specific grade of steel will depend on the application and the required properties, such as corrosion resistance.
Dimensions: Specify the dimensions of the oval elliptical dish head, including the major and minor axis dimensions, crown radius, knuckle radius, and thickness. These dimensions should be determined based on the tank's design requirements and specific application.
Design codes and standards: Consult relevant design codes and standards, such as API 650 (for welded steel tanks) or API 620 (for low-pressure storage tanks), to ensure compliance with industry regulations and safety requirements.
Manufacturing process: Specify the desired manufacturing process for the dish head, such as cold forming or hot forming, depending on the material and desired properties.
Surface finish: Determine the required surface finish of the dish head, such as polished, painted, or coated, to suit the aesthetic and functional requirements of the tank.
When working with a manufacturer or supplier, provide them with the specific requirements and specifications for the steel oval elliptical dish head. This will ensure that the dish head is designed and fabricated to meet your needs and the applicable industry standards.
It is recommended to consult with professionals experienced in tank design and fabrication to ensure that the dish head and overall tank design are safe, efficient, and compliant with relevant regulations.
SPECIFICATIONS
| Brand Name: | HaiQun |
| Diameter: | 89mm--10000mm |
| Thickness: | 2mm--300mm |
| Reduction Ratio: | about 10% |
| Material: | Carbon Steel, Stainless Steel, Duplex, Super Duplex, Aluminum, Nickel and Nickel Alloys, Copper and Copper Alloys, Titanium and Its Alloys, Zirconium and all cladded material combinations. |
| Forming method: | Hot forming,cold forming |
| Surface Treatment: | Sand Blasting,Pickling,oil,discaling |
| Inspection: | UT,RT,MT,PT,TOFD. |
| Applicable Standard: | ASME ,PED and GB |
| Certificate: | ISO9001,ISO45001,OHSAS18001 |
| Applications: |
Such as oil, chemical industry, water conservancy, electric power, |
| Package: | Wooden cases ,wooden pallet,Steel pallet or as per customers requirement |
| Customized Product: | Available |
| Material | Carbon Steel; Stainless Steel; Special Steel |
| Size | 50-10000mm |
| Thickness | 2mm--300mm |
| Surface Treatment | 1. Intermediate & Final stage Heat Treatments; 2. Sand / Shot Blasting after Heat Treatment; 3. Weld Edge Preparation (Manual & Machined) |
| Reduction ratio | About 10% |
| Certificate | ISO9001 |
| Technology | 1. Cold & Hot forming; 2. Hot Pressed Hemispheres and Cold Formed Segmental Hemispheres; |
| Applicable standard | ANSI, ASME, MSS, API, DIN, JIS, BS. AWWA |
| Test | 1. Liquid Penetrant Examination; 2. Ultrasonic Testing; 3. 100% Radiography Testing of weld seams; 4. Magnet Particle Examination; 5. Inspection under various Third party Inspection Agencies 6. NDT( after forming): DPT, RT, MPI, UT; 7. NDT: 100% DPT, UT & RT OF weld joint |
| Connection | Welding |
| Application | Pressure vessel |
PRODUCTS
PRODUCT DELIVERY
FAQ
Q: Why choose us?
A: Our company has been in the header manufacturing business for more than thirty years. We have rich international experience and professionalism, and we can provide customers with a variety of high-quality header products.
Q: Can we provide OEM/ODM service?
A: Yes.Please feel free to contact us for further details.
Q: What are your terms of payment?
A: One is to telegraphic transfer 30% of the deposit before production the remaining 70% to the copy of the bill of lading;The other is an irrevocable 100% sight L/C
Q: Can we visit your factory?
A: A warm welcome.Once we have your itinerary we will arrange for a professional sales team to follow up your case.
Q: Can you provide samples?
A: Yes,the sample of general size is free of charge,but the buyer needs to pay the shipping fee.
